Vapor Chamber 101: What is a Vapor Chamber

If you’re learning about advanced cooling, you might wonder what is a vapor chamber is and why it’s important in modern electronics.  This Vapor Chamber 101 guide explains what a vapor chamber is, how it works, and why it’s essential for cooling devices.

What is a Vapor Chamber?

A vapor chamber is a special device that spreads heat evenly across a large, flat surface to help keep electronics cool. Inside, there’s a small amount of liquid (usually pure water) and a material called a wick. When one part gets hot, the liquid turns into vapor (like steam) and spreads heat throughout the chamber. The liquid then moves back to the hot area through the wick, and the cycle repeats. This process moves heat very efficiently.

What Are Vapor Chambers Made Of?

  • Outer case: Typically made of copper because it conducts heat very efficiently.
  • Wick: Made from things like copper mesh or powder, which helps move the liquid back to the hot area.
  • Liquid inside: Clean (deionized) water is commonly used because it handles heat well.

How Vapor Chambers Work

A vapor chamber is a device that helps spread heat evenly over a flat surface. It works by using a cycle where liquid inside changes to vapor (steam) and back to liquid, moving heat from a hot spot to cooler areas.

How it works step-by-step

  1. Heat Absorption: Heat from a CPU or GPU causes the liquid inside the vapor chamber to evaporate, absorbing significant heat.
  2. Vapor Moves: The vapor travels inside the chamber from the hot area to cooler spots, helped by the low pressure inside the chamber that pushes the vapor along.
  3. Heat Release: When the vapor reaches a cooler area, it turns back into liquid, releasing the heat it carried.
  4. Liquid Returns: The liquid moves back to the hot area through a wick (a special material like copper mesh) using tiny capillary forces, so the cycle can start again.
READ ALSO  How to Build a Sunroom with a Small Electric Generator in the UK?

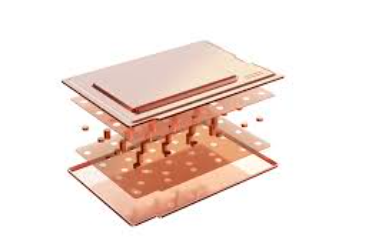

Components of a Vapor Chamber

A vapor chamber is a special device that spreads heat quickly and evenly over a large, flat surface. It works by using a process where a liquid inside changes into vapor and then back to liquid to move heat away from hot spots.

Key parts of a vapor chamber

  1. Outer Shell: The outside case is usually made of copper or aluminum because these metals transfer heat very well. To allow the liquid within to properly evaporate and condense, the shell is vacuumed and tightly sealed.
  2. Using capillary action—similar to how a sponge absorbs water—the wick assists in drawing the liquid back to the heated area.
  3. Working Fluid: This is usually very clean water, which evaporates when heated and condenses when cooled, carrying heat through this phase-change process.
  4. Evaporation Zone: This is where the heat from the source (like a CPU) warms the fluid, causing it to evaporate and absorb heat.
  5. Condensation Zone: As the vapor moves to cooler parts of the chamber, it turns back into liquid and releases the heat there.

Why Vapor Chambers Are Great for Cooling:

  1. Efficient Heat Transfer: Vapor chambers use a phase-change cooling process that rapidly spreads heat across their surface, helping to keep high-performance electronics cool and safe from overheating.
  2. Uniform Heat Distribution: Their flat design prevents heat from concentrating in one spot, reducing hotspots and ensuring the entire device stays cooler.
  3. Slim and Lightweight: Vapor chambers are often less than 1 millimeter thick, making them ideal for slim devices like smartphones and laptops without adding extra bulk.
  4. Vapor chambers function silently since they don’t require fans or pumps, which helps keep gadgets noise-free. Reliability and Durability: Vapor chambers are dependable and long-lasting, requiring less maintenance because they don’t have any moving parts.
  5. Handles High Thermal Loads: Vapor chambers efficiently manage large amounts of heat, making them ideal for powerful components such as gaming CPUs and graphics cards.
READ ALSO  The Ultimate Guide to WooCommerce Development Services: What You Need to Know

Vapor Chambers vs. Heat Pipes: What’s the Difference?

Both vapor chambers and heat pipes cool hot components without using fans or pumps. By turning liquid into vapor and then back into liquid, they effectively transfer heat. However, they differ in shape, applications, and advantages.

Heat Pipes

Heat pipes are wick-lined, sealed tubes with a tiny amount of liquid inside. When one end heats up, the liquid evaporates, carrying heat along the pipe, then condenses at the cooler end to complete the cycle.

  1. Shape
    • They are usually round tubes that can be bent or shaped to fit into different spaces.
  2. Advantages
    • Move heat well over longer distances (more than about 2 inches).
    • Flexible shape to fit complex designs.
    • Usually cheaper to make.
  3. Limitations
    • Only transfer heat in one direction along the pipe.
    • It may be too bulky for very small or tight spaces.

Vapor Chambers

Vapor chambers are flat, sealed plates that spread heat evenly in two directions, similar to heat pipes but over a wider area.

  1. Shape:
    • Usually flat and rectangular, often used as the base of a heat sink.
  2. Advantages:
    • Evenly spreads heat across a large area to prevent hot spots.
    • Handle more heat power (some up to 450 watts).
    • Ultra-thin design (under 1 mm), ideal for slim devices.
  3. Limitations:
    • Limited to flat shapes, so less flexible for unusual designs.
    • More expensive to manufacture.

When to Use Which

  • Choose a heat pipe if you need to move heat over a distance, especially in devices with tricky shapes or tight bends.
  • Choose a vapor chamber if you need to spread heat evenly over a flat surface, such as in powerful CPUs, GPUs, or slim electronics.
READ ALSO  How to Build a Portable Solar Power Generator

Sometimes, both are used together in advanced cooling systems to get the best of both worlds.
